With a yield of 11 to 15%, a polycrystalline photovoltaic panel offers a powerful installation at an affordable cost.
If these panels do not suit you, discover our other ranges: Back Contact photovoltaic panel, Monocrystalline photovoltaic panel, flexible photovoltaic panel.

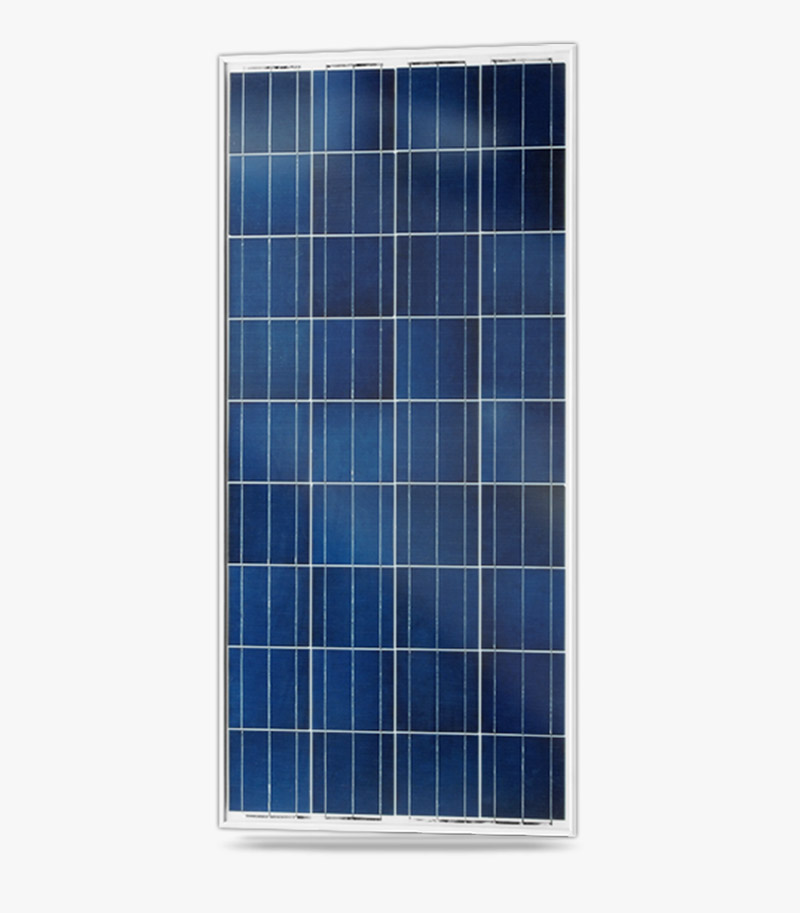

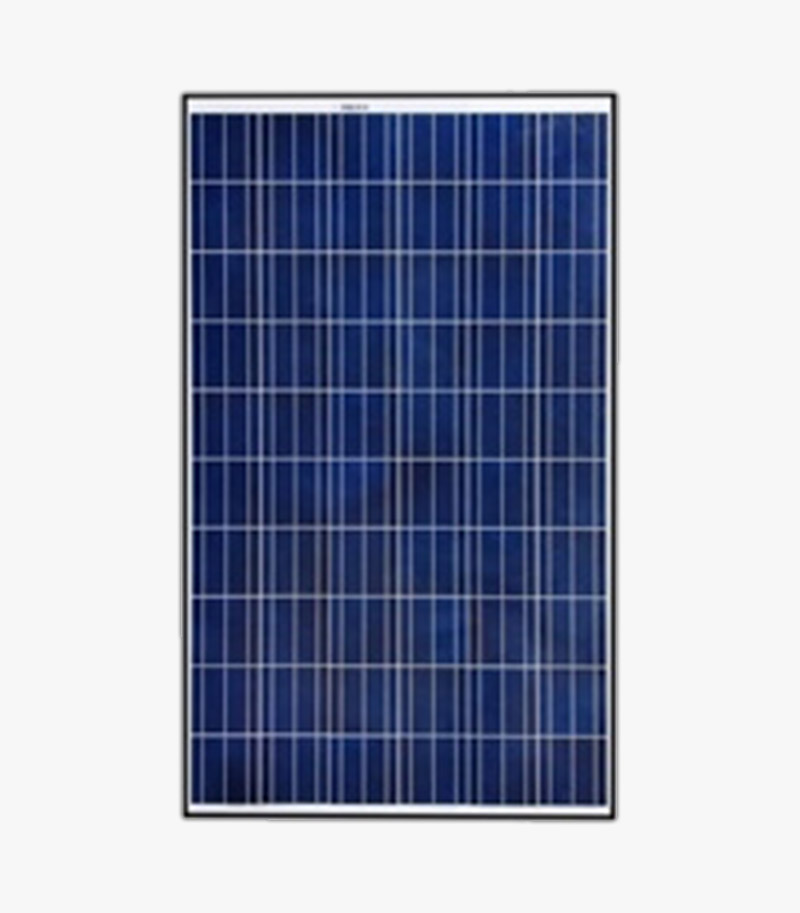

Polycrystalline solar panel
Voltage-temperature coefficient favorable for use at high temperatures
Outstanding performance in low irradiation and high sensitivity to the entire solar spectrum
Multifunctional waterproof sealed connection box
High performance bypass diodes (better protection against hotspot effects in case of partial occultation)
Advanced EVA (Ethylene Vinyl Acetate) Encapsulation Process with 3-Layer Bottom Face
Robust frame made of anodized aluminum
Tempered glass top: high transmissibility, increased rigidity, excellent impact resistance.
No cable
Warranty: 5 years on the panel (25 years at 80% of its power)
Manufacturer: Victron (Netherlands)
This photovoltaic panel is intended for photovoltaic installations not connected to the electricity grid (isolated site): it must be connected to 12V batteries, which store the energy that you then use for lighting mainly.
The installation is quick and easy thanks to the 4 fixing holes on the aluminum frame and the 45cm cables at the panel exit.
This panel is designed and manufactured to meet IEC 61215 quality standards.
To compose your installation think to add a regulator and a battery
For any sizing request:infos@gbsolar-es.cd
How a photovoltaic panel works: some simple definitions
For basics (and because we like Wikipedia) the definition of solar panel by Wikipedia, which makes it possible to clearly distinguish photovoltaic panel solar panel.
To complete this very general definition, we offer several tips sheets on the operation of a photovoltaic panel and the design of a photovoltaic installation for isolated site.
