Since the cells of the Back Contact photovoltaic panel are welded to each other on the back side, this type of panel offers a greater area of solar radiation than the other panels of identical surface. This results in a yield generally higher than 10%.
If these panels do not suit you, discover our other ranges: flexible photovoltaic panel, Polycrystalline photovoltaic panel, monocrystalline photovoltaic panel.

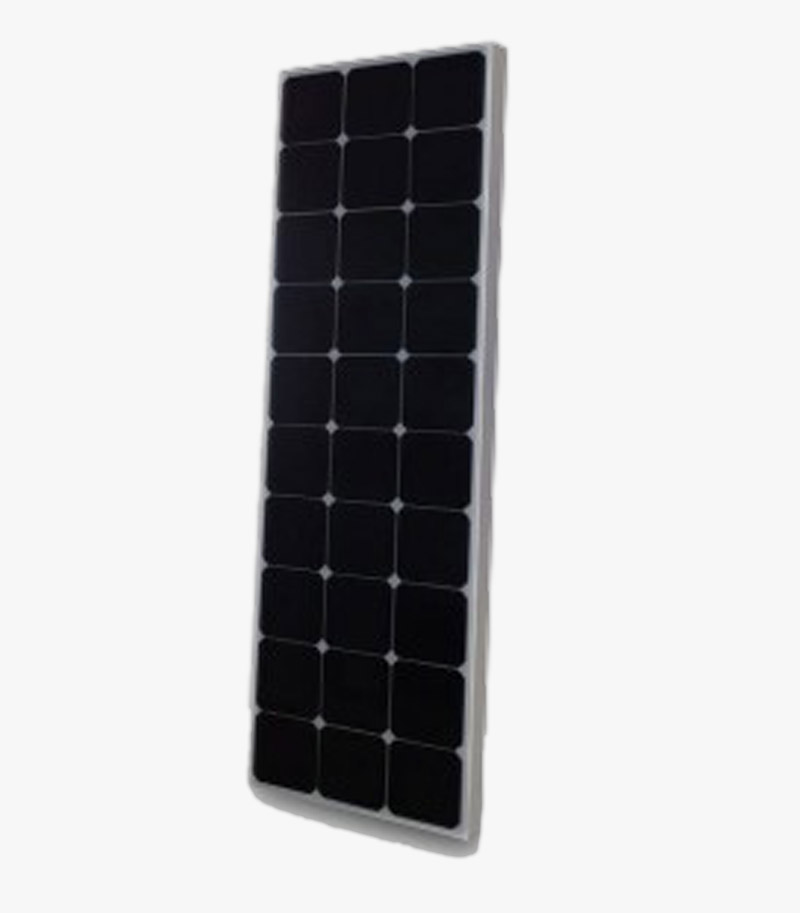

For a 60 Wc monocrystalline back contact solar panel
Voltage at max power: 17.5 V
Voltage in open circuit: 21.3 V
Intensity at Max. (Imp): 3.42 A
Short-circuit current: 3.78 A
Dimensions: 734 x 535 x 35 mm
Junction box: Cixi Renhe / PV-RH0502 (IP65)
Weight: 5.8 kg
Warranty: 2 years on the panel (10 years on a minimum power of 90%)
Manufacturer: Jiawei (RPC)
Designed for installations in isolated sites (house, swimming pool, motorhome, solar pumps ...), these modules have the advantage of being very aesthetic thanks to the manufacturing process that welds the cells not on the place of the panel but on the reverse of where his name "back contact"
This process uses Sun Power cells to increase the reflection surface of photovoltaic cells, this unique structure, different from conventional cells, provides yields of up to 20% and gives excellent energy production. whatever the sun conditions.
For any sizing request: info@globalservicesrdc.com
How a photovoltaic panel works: some simple definitions
For basics (and because we like Wikipedia) the definition of solar panel by Wikipedia, which makes it possible to clearly distinguish photovoltaic panel solar panel.
To complete this very general definition, we offer several tips sheets on the operation of a photovoltaic panel and the design of a photovoltaic installation for isolated site.
