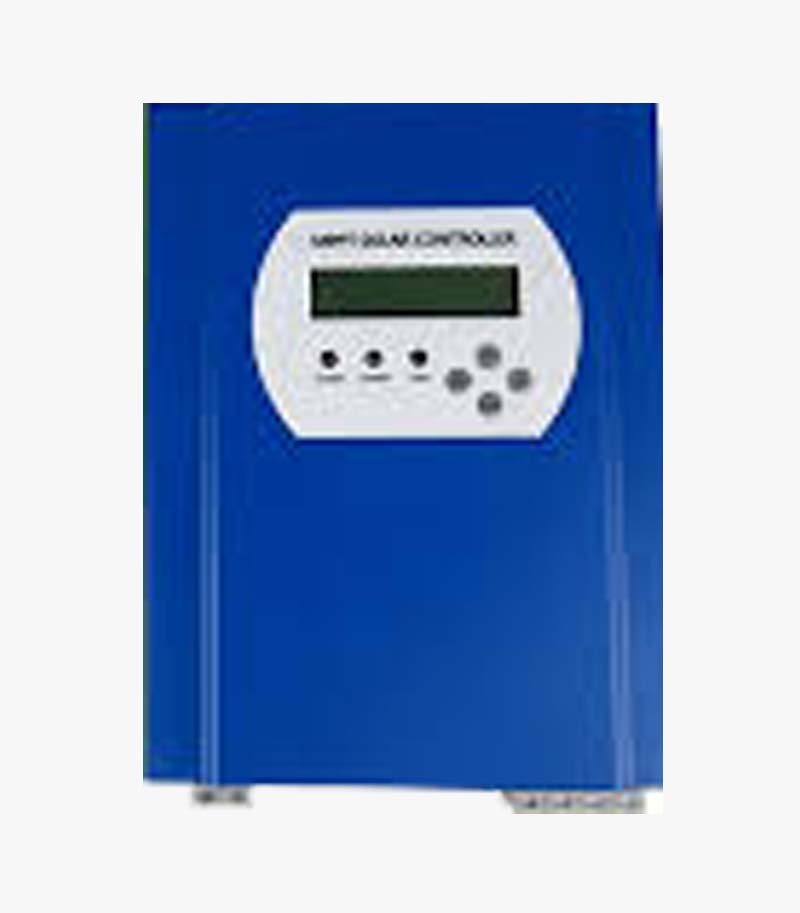

Regulator MPPT ROHS 60A

1. MPPT Rohs 12/24 / 48V 60a series adopted with auto cool, high conversion efficiency, LCD screen and free PC software. It has an MPPT Algorithm Controller that tracks the maximum power point of the PV array in any environment. Significantly improve the use of the solar panel. Also added the output function (USB 5V 3A). For mppt controller Can be widely used in off-grid solar system, communication base station solar system, solar household systems, solar street systems, field monitoring and other fields. > 2.12V / 24V / 48V automatic recognition battery system, convenient for customers to use.
3.Maximum PV input voltage up to DC150V.
4.Controllers can be connected in unlimited parallel.
 5.Charge: three stages (fast charge, constant charge, floating charge). To extend the life of the battery
 6.Discharge: ON Mode / OFF, dual time control mode, PV voltage control mode, PV voltage + time delay mode and so on.
7. Recommended battery types: sealed lead acid, Ventilated battery, Gel, NiCd. Other types of batteries may also be defined, such as the lithium battery, etc.
8.CE, ROHS, FCC certifications approved, other certifications can also be made on the basis of different requirements.
9. 2 years warranty and 3 ~ 10 years extended technical service.
8.RS232 communication, we can offer the communication protocol too, it is convenient for the management of the user integration.
9.CE, RoHS, FCC certifications approved. We can help customers to approve other certifications.
10.2 years warranty. And 3 ~ 10 years of extended warranty service can also be provided.
